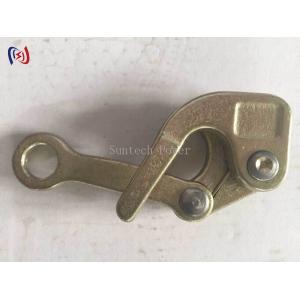

Universal Gripper Manual Adjustable Clamping Tool For Power Line Work​

​​Core Mechanical Features​​

• ​​Manual screw-adjustable jaws​​ with 20-80mm clamping range
• ​​Drop-forged carbon steel​​ body with zinc plating (ISO 1461)
• ​​Interchangeable jaw inserts​​ for different cable types (3 sets included)
• ​​Basic load limiter​​ via shear pin design (fails at 150% WLL)
• ​​Serrated grip surface​​ with replaceable teeth plates

​​Operational Mechanics​​
✔ ​​Hand-powered operation​​ - no external power required
✔ ​​Adjustable pressure​​ through threaded screw mechanism
✔ ​​Visual load indicator​​ - color-coded tension marks
✔ ​​All-mechanical overload protection​​ - shear pin fails at 15kN
✔ ​​Standard wrench compatibility​​ - fits 22mm/24mm tools

​​Durability Specifications​​
• ​​1500-hour salt spray tested​​ (ASTM B117)
• ​​Grease lubrication ports​​ at pivot points
• ​​Field-replaceable wear parts​​ using basic tools
• ​​Minimum tensile strength​​ 450MPa for all load-bearing parts

​​Mechanical Safety Systems​​
✓ ​​Positive locking screw​​ with secondary safety nut
✓ ​​Corrosion-resistant fasteners​​ (AISI 304 stainless steel)
✓ ​​Manual reset required​​ after overload release
✓ ​​Non-conductive fiberglass handles​

​

​​Basic Maintenance Requirements​​

• ​​Monthly grease application​​ (NLGI #2 lithium-based)
• ​​Annual inspection​​ of all moving parts
• ​​Jaw plate replacement​​ every 3,000 cycles
• ​​Shear pin inventory​​ (3 spare pins included)

​​Fundamental Applications​​
➔ ​​Temporary conductor holding during splicing​​
➔ ​​Dead-end termination assistance​​
➔ ​​Basic tensioning for repair sleeves​​
➔ ​​Anchor point stabilization​​
➔ ​​Cable pulling guidance​

​

​​Mechanical Accessories​​

• ​​Extension handle​​ for increased leverage
• ​​Spare jaw insert kit​​ (3 types)
• ​​Weatherproof grease gun adapter​​
